| Brand Name : | DFSK |
| Model Number : | D71 CNG /D72 CNG |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 70000 units per year |
| Delivery Time : | 10-15 working days |

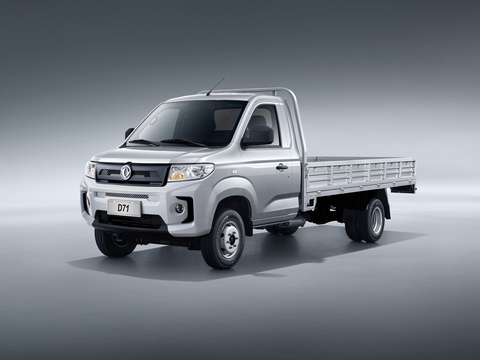

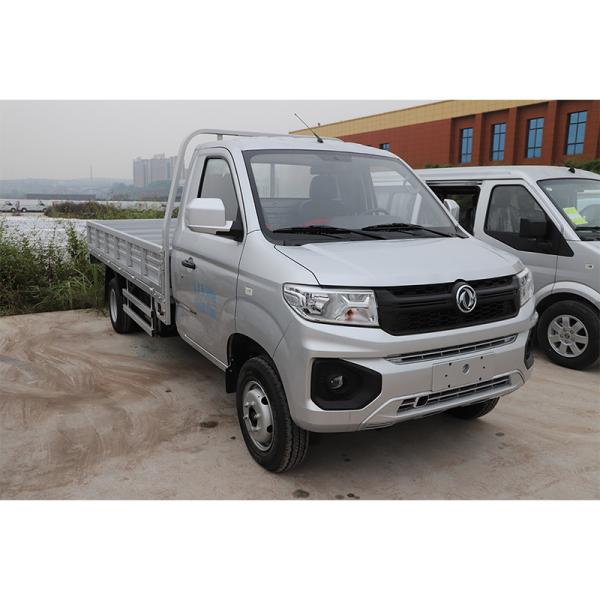

DFSK D71/D72 CNG Model Best Small Pickup Truck
Specification
| DFSK D71 CNG | DFSK D72CNG | |||
| Models | LV0 (9V) | LV1(8K) | LV0 (4H) | LV1 (8J) |
| (3.4m split cargo box with gantry) | (3.4m split cargo box with gantry) | (2.6m split cargo box with gantry) | (2.6m split cargo box with gantry) | |
Fuel | ||||
Energy category | natural gas | natural gas | ||
Basic parameters | ||||
Body form | Non-load-bearing | Non-load-bearing | ||
Length(mm) | 5710 | 5610 | ||
Width(mm) | 1785 | 1785 | ||
Height(mm) | 2050 | 2070 | ||
Wheelbase(mm) | 3450 | 3450 | ||
Front and rear track(mm) | 1487/1350 | 1487/1350 | ||
Case length(mm) | 3400 | 2600 | ||
Case width(mm) | 1680 | 1680 | ||
Cargo case height(mm) | 370 | 370 | ||
Number of seats | 2 | 5 | ||
Engine and rear axle | ||||
Engine model | SFG16CN | SFG16CN | ||
| Main engine technologies | Naturally Aspirated VVT | Naturally Aspirated VVT | ||
Displacement(ml) | 1597 | 1597 | ||
Emission | China VI | China VI | ||
Maximum power (kW) | 77 | 77 | ||
Maximum torque (N.m) | 135 | 135 | ||
EFI | Ryoden | Ryoden | ||
Naturally Aspirated VVT | 5.125 | 5.125 | ||
Gearbox and System structure | ||||
Transmission form | 5MT | |||
Clutch form | Hydraulic | |||
Drive form | Mid-mounted rear drive | |||
Front suspension type | 6-piece longitudinal leaf spring non-independent suspension, upper leaf spring | |||
Rear suspension type | 7+5 longitudinally mounted leaf springs, non-independent suspension, upper leaf springs | |||
Brake form | Front disc and rear drum | |||
Parking brake type | Mechanical handbrake (central parking brake) | |||
Steering system | Electric power steering | |||
External configuration | ||||
Tire | 185R14 LT 6PR(Dual rear wheels) | |||
Rim | Steel wheels (silver) | Steel Wheels (Black) | ||
wheel caps/covers | — | |||
wheel nuts | galvanized nut | |||
Spare tire | 185R14 LT 6PR Steel Wheels (Black) | |||
Front/rear bumper | Front body color + black suit | |||
| Grille | Structure: One-piece | |||
| Grill body: Black | ||||
Front/rear fenders | With front and rear fenders | |||
| Front combination headlight | Ordinary halogen headlights, height electrically adjustable | |||
Front fog lights | ○ | ● | ○ | ● |
Daytime running lights | — | |||
Side turn signal | Yellow light bulb on fender, white lampshade | |||
Wiper | Front wiper only (with bone) | |||
Exterior mirrors | Leather pattern, mirror base, mirror case Nissan black | |||
Skylight | — | |||
Outside handle | Horizontal pull type, black | |||
Full door glass | Lifting glass | Front door lifting glass, rear door lifting glass | ||
Glass regulator | Front door: Electric lift | Front door electric lift, rear door manual lift | ||
| External cut water glue strip | Black | |||
Sliding door rail trim | — | |||
Rear combination lights | Halogen, single pour single fog | |||
Rear fog lamps | ●Single fog light | |||
Retro reflector | ● | |||
High brake lights | — | |||
Tail wing | — | |||
| Body exterior decorative parts | — | |||
| Rear license plate light cover | — | |||
| Whole vehicle logo | Front logo: Dongfeng LOGO (blue background) In-vehicle nameplate: soft label Rear label: "Dongfeng Xiaokang" in full font Rear logo: Dongfeng LOGO (blue background) Model number: D71 Flexible reflective label | Front logo: Dongfeng LOGO (blue background) In-vehicle nameplate: soft label Rear label: "Dongfeng Xiaokang" in full font Rear logo: Dongfeng LOGO (blue background) Model number: D72 Flexible reflective label | ||
luggage rack | — | |||
Applique | CNG decals | |||
Engine protective cover | ●(1.6L engine) | ● | ||
Tank | 15L | |||
Open the fuel tank cap | Key to open | |||
| Gas bottle protective cover | ● | |||
Gas cylinder | 80L+80L, arranged on both sides of the chassis | 65L+65L, arranged on both sides of the chassis | ||
Internal configuration | ||||
Full car interior style | Nissan black + elegant gray | |||
Sun visor | Light gray, PVC, single visor | |||
Interior rearview mirror | Glass, Nissan black, manual anti-glare | |||
Dashboard | Main Body Nissan Black | |||
Instrument cluster | 2 pointers + 3.5-inch LCD | |||
| Car audio and video system | MP3 player with USB interface + FM stereo/AM radio playback | |||
Speaker | 1, distributed on the instrument panel, driver's side | |||
| Heater control mechanism | Standard configuration: without A/C switch, three-knob decorative
ring Optional: With A/C switch (with air conditioner), three-knob decorative ring | With A/C switch (with air conditioner), three-knob decorative ring | Standard configuration: without A/C switch, three-knob decorative
ring Optional: With A/C switch (with air conditioner), three-knob decorative ring | With A/C switch (with air conditioner), three-knob decorative ring |
Cigarette lighter | ● | |||
| Steering wheel | Three-frame, normal, Nissan black | Three-spoke, multi-function (with Bluetooth), Nissan black | Three-frame, normal, Nissan black | Three-spoke, multi-function (with Bluetooth), Nissan black |
| Combination switch upper and lower cover | Nissan black | |||
Shift control mechanism | Body Nissan black, shift ball head Nissan black | |||
Handbrake | Nissan Black | |||
Control box + cup holder | Control box Nissan black, with front cupholders, without center armrest | |||
| Reading light (front/middle/rear) | With front reading light | With front reading light, middle and rear without | ||
Front door light switch | ● | |||
Rear door light switch | — | |||
Trumpet | Snail type | |||
| Air conditioner | ○(Optional single steam air conditioner) | ●(single steam air conditioner) | ○(Optional single steam air conditioner) | ●(single steam air conditioner) |
| Interior panels (door/side panels) | Front door: Nissan black, injection molded interior panels | Front door: Nissan black, injection molded interior panels Middle door: Nissan black, full leather (with cloth base) + back foam | ||
Roof (hard top/soft top) | Hard top, non-woven fabric, light gray | |||
Safety handle | 1 piece, elegant gray1 | 1 piece, elegant gray | ||
| Car handle (mounted on the column) | 2 pcs, one on each side, elegant gray | 4 pcs, 2 pcs on each side, elegant gray | ||
| Armrest + rocking handle | The front door interior panel comes with its own, and the armrest cover has a matte texture. | The front door interior panel comes with its own, and the armrest
cover has a matte texture. Rear door with rocker handle, inner armrest, Nissan black | ||
| Inward opening handle | Base Nissan black, handle Nissan black Locking button + bushing | |||
Locking button + bushing | Integrated with inner handle, locking button, without bushing | |||
| Overall description of the seat | Two-seater, fabric seat, Nissan black + blue 2 | Five-seater, fabric seat, Nissan black + blue 2 | ||
| Front seats | 4-way manual adjustment for the main driver: with slide rail, adjustable backrest, split headrest | |||
| 2-way manual adjustment for front passenger: without slide rail, adjustable backrest, split headrest | ||||
| Second row seats | — | The seat cushion is integral, the seat cushion is reversible, and the head rests on the rear panel | ||
| Seat belt | Three-point type: 3+3, ordinary type, Nissan black | Three-point front row: 3+3, regular, Nissan black; Second row: 3+2+3, regular style, Nissan black | ||
Carpet | 1.6mm pebbled PVC foam carpet + insulation layer, Nissan black | |||
Floor decoration | Nissan Black | |||
Floor battens/steps | Nissan Black | |||
Safe configuration and intelligence | ||||
| Anti-lock braking system (ABS/EBD) | ● | |||
Reversing radar | ○ | ● | ○ | ● |
Reversing video images | — | ● | — | ● |
Driving recorder | — | ● | — | ● |
Central locking | Remote control | |||
Key | One remote control key + one ordinary key | |||
GPS navigation system | — | ● | — | ● |
| Non-stop toll collection system (ETC) | ○ | |||
“●”——Indicates that this configuration is available, “○”——Indicates that this configuration is optional,
“-”——Indicates that this configuration is not available
DFSK D71 CNG/D72 CNG Advantages Introduction
DFSK's D71/D72 models add CNG versions, D71 CNG/D72 CNG models
The main change of the new car is in the power. Both new cars will be equipped with a 1.6L natural gas engine with a maximum power of 77kW (105 horsepower) and a maximum torque of 135 Nm. The transmission system is matched with a 5-speed manual transmission and adopts a mid-mounted rear-wheel drive layout. In addition, the D71 CNG will be equipped with a 15L fuel tank and two 80L gas cylinders, while the D72 CNG will be equipped with a 15L fuel tank and two 65L gas cylinders.
The overall appearance of the new car has not changed much, but the
blue-bottomed brand LOGO has been replaced in details, and CNG body
decals have been added to highlight its identity. In terms of body
size, the length, width and height of the D71 CNG are
5710/1785/2050mm respectively, and the length, width and height of
the cargo box are 3400/1680/370mm respectively; the length, width
and height of the D72 CNG are 5610/1785/2070mm respectively, and
the length, width and height of the cargo box are 2600/1680/370mm
respectively.
|
|
